Headers & Exhaust · Queen Creek, AZ

Unrestrict the flow. Define the sound.

Long-tube headers and mandrel-bent T304 exhaust that scavenge trapped horsepower and engineer the note you actually want: flawless fitment, dyno-validated, tuned to match.

  • ValidatedIn-House Dynojet
  • MaterialT304 Stainless
  • ProtectionThermal Management
  • PlatformsLS · LT · Coyote · Hemi
The Anatomy of Flow

From port to tip

Every section of the exhaust tract does a job. Here's how each one makes power and shapes sound.

01 · Scavenging

The scavenging effect

Factory cast manifolds are a 'log': short, lumpy, built for packaging and quiet. Long-tube headers use equal-length primaries that merge far downstream, so each exhaust pulse creates a low-pressure wave that literally pulls spent gas out of the next cylinder (scavenging), packing more fresh air/fuel into every intake stroke. That's real mid-range and top-end power on LS, LT, Coyote, and Hemi platforms.

  • Equal-length primaries tuned to your RPM target
  • Primary diameter matched to power goal (bigger ≠ better)
  • Merge collector sized for scavenging, not just flow
  • Biggest gains realized once paired with a tune
Manifold vs. Header

Why the stock manifold has to go

The single biggest restriction between your combustion chamber and the tailpipe is the part the factory bolted on.

Stock 'Log' Manifold

Built for quiet & cost

A short, restrictive cast-iron 'log' that traps exhaust and strangles flow: a packaging and noise compromise, never a performance part.

Design
Short cast 'log'
Flow
Restrictive, traps gas
Scavenging
Effectively none
Power
Left on the table
The Soundtrack of Power

Hear it before you build it

The Soundtrack of Power

Listen before you book

A build should sound as good as it dynos. Pick a clip and hear real APA exhaust work on our channel.

Cold Start · APA on YouTube
The APA Installation Blueprint

Bolted on right, or not at all

Headers are as much about the install as the part. Cheap installs tick, leak, and back out. Here's the standard every exhaust job leaves on.

  • Stage-8 locking header bolts that never back out
  • Fresh premium multi-layer gaskets, never reused
  • Spark plug wire & boot clearance verified
  • Steering shaft & chassis clearance checked
  • Bolts torqued to spec and re-checked after heat cycles
  • O2 bungs placed for accurate wideband tuning
Straight Answers

Headers & exhaust questions

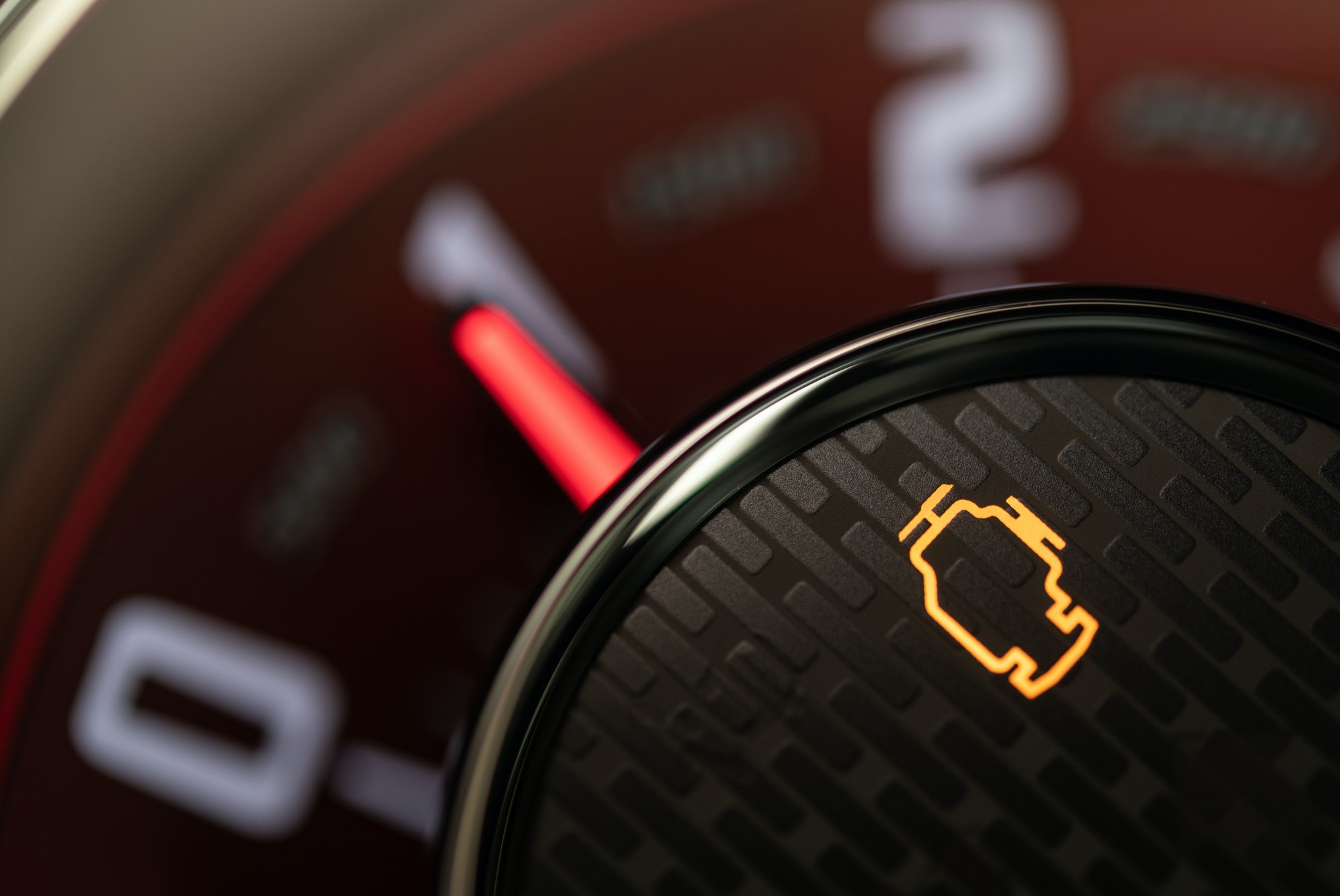

Will long-tube headers trigger a check-engine light?

They can, if the tune isn't addressed. Long-tubes move the O2 sensors downstream and change their thermal profile, and the airflow jump shifts your volumetric-efficiency tables, so the factory calibration can throw lean or catalyst-efficiency codes. Every long-tube install we do includes the HP Tuners calibration that keeps the light off and the fueling correct.

What's the difference between an X-pipe and an H-pipe?

An X-pipe merges the two banks for a raspy, high-RPM exotic tone and a touch more top-end power; an H-pipe keeps them more separate for a deeper, classic muscle-car rumble. Neither is objectively better; it's the sound character you want, and we'll help you match it to your headers and goals.

Will my car drone on the highway?

Not if it's built right. Drone is a resonance problem, not just a volume problem, so we choose mufflers, resonators, and pipe sizing to cancel it; the car sounds aggressive under throttle and settles down at a steady cruise.

Can I reuse my factory exhaust gaskets?

No. Header gaskets are a one-time-use, sealing-critical part; reusing them invites exhaust leaks, ticking, and false lean readings at the O2 sensor. We install fresh premium gaskets and Stage-8 locking bolts so the seal holds and stays held.

Do headers really need a tune?

Long-tubes, strongly yes. The airflow and O2 changes make the factory calibration wrong, which costs power and can hurt drivability or throw codes. We validate the install on our in-house Dynojet and calibrate with HP Tuners so you capture the full, safe gain.

Free up your build

Tell us your platform and the sound you're after. We'll spec the headers, mid-pipe, and cat-back and back it with a tune. APA Custom Shop, Queen Creek, AZ.

Quote Your Exhaust SetupCall (602) 762-4916
