One of the most critical Coyote oil pump gear upgrade benefits is replacing brittle factory parts with robust billet steel components. This essential modification prevents catastrophic engine damage from oil starvation, a known failure point in Ford's V8, ensuring bulletproof reliability for high-performance Mustang and F-150 applications.
Table of Contents
- What Makes the Factory Coyote Oil Pump Gears a Weak Point?
- Key Coyote Oil Pump Gear Upgrade Benefits
- When Do Coyote Oil Pump Gear Upgrade Benefits Become Essential?
- Why Trust Apacustom Shop for This Critical Upgrade?
- Frequently Asked Questions
What Makes the Factory Coyote Oil Pump Gears a Weak Point?
The factory oil pump gears in Ford's Coyote V8 are the engine's Achilles' heel because they are manufactured from powdered metal. This material is inherently prone to fracturing under the unique stresses of high RPM and high horsepower applications. The failure isn't a gradual wear-and-tear issue; it's a sudden, catastrophic event. When these gears shatter, the oil pump stops working instantly, leading to a complete loss of oil pressure and, within seconds, severe or total engine seizure.
Two primary forces conspire to destroy these stock gears: harmonic vibrations and torsional stress. As engine speed increases, so do crankshaft harmonics—tiny, rapid vibrations. American Muscle notes that once you push past the factory redline, which is typically 7,000 RPM for a standard Coyote or 7,800 RPM for a Boss 302, these harmonics can become unbalanced and intense enough to shatter the sintered metal gears. The second factor is the abrupt change in crankshaft speed. A hard rev-limiter hit, a missed shift, or even the rapid engine deceleration when wheel-hopping can send a shockwave through the timing chain assembly, directly impacting the oil pump gears and the equally vulnerable powdered-metal crankshaft sprocket that drives them.
Definition: Powdered Metal Sintering This is a manufacturing process where fine metal powders are compressed into a desired shape (a mold or 'die') and then heated to a temperature just below their melting point. This heating, or sintering, causes the metal particles to fuse together, forming a solid, net-shape part. While cost-effective for mass production, the resulting component lacks the uniform grain structure and tensile strength of a part machined from a solid billet of forged steel, leaving it susceptible to fracturing under high-frequency vibration or shock loads.
Key Coyote Oil Pump Gear Upgrade Benefits

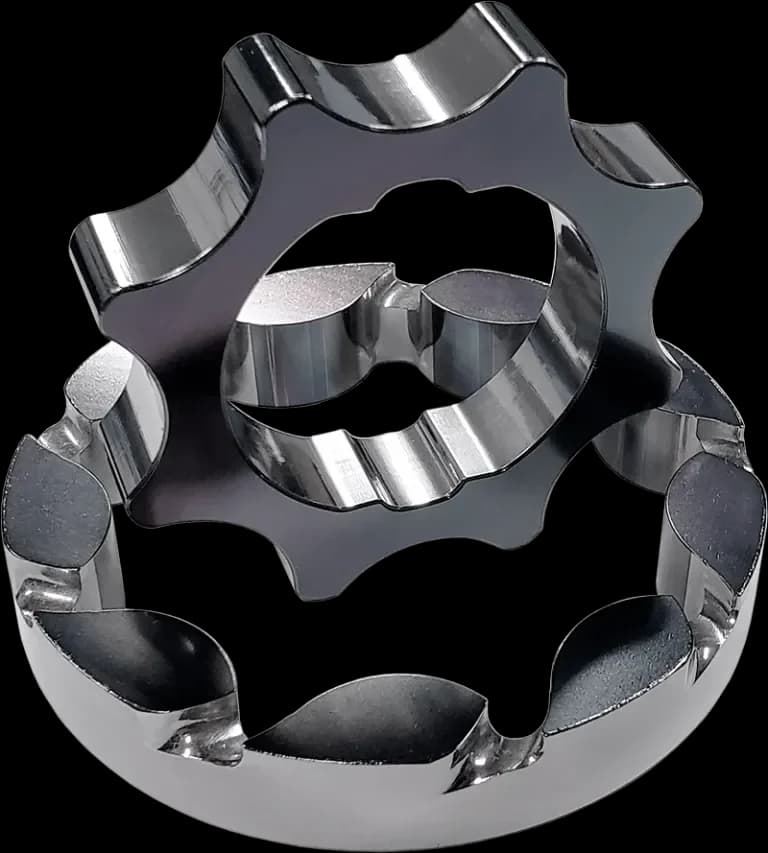

The core of the Coyote oil pump gear upgrade benefits comes from a fundamental change in material and manufacturing process. Instead of compressed powder, billet gears are CNC-machined from a solid piece of extremely strong material, typically chromoly steel. This process creates a part with a consistent internal grain structure that can withstand immense stress, vibration, and shock loads without fracturing.
The precision involved is a key part of the solution. High-end billet gears, as highlighted by TSS, are often machined to incredibly tight tolerances of +/- 0.0005 inches. This precision ensures perfect mesh and minimal parasitic loss. Many also feature advanced surface treatments like MartenWear hardening to significantly reduce friction and improve longevity under extreme use. The result is a component designed for stable and efficient oil delivery at sustained high RPMs. Wild 5 Racing notes that quality billet gears are proven reliable well beyond 9,000 RPM, with some applications tested up to an astonishing 13,000 RPM.

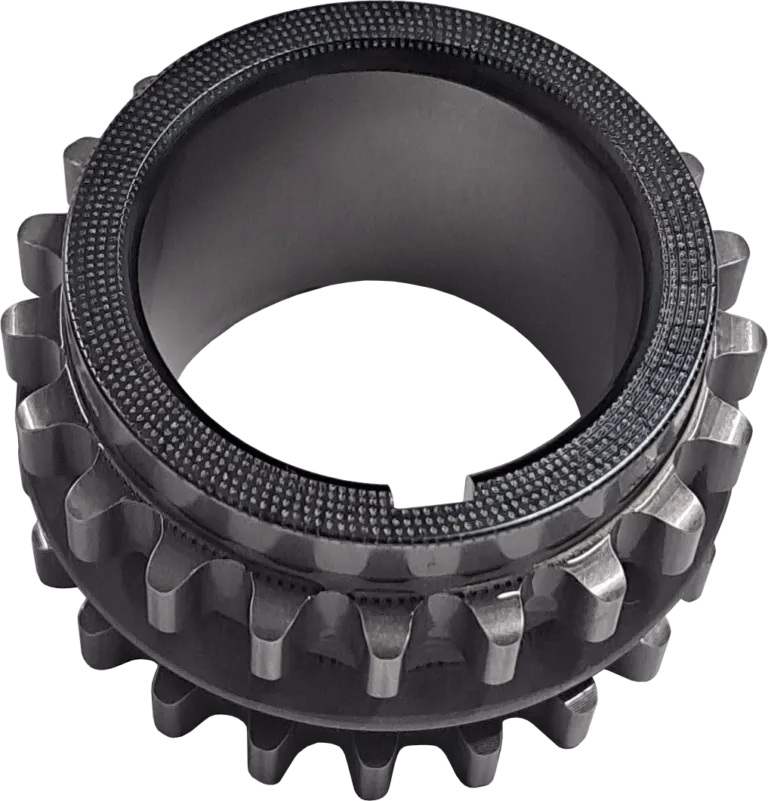

Critically, a complete upgrade also addresses the crankshaft sprocket. Wild 5 Racing points out that the factory crankshaft timing sprocket, which drives the chain connected to the oil pump, is also a powdered-metal part. Leaving the stock sprocket in place means you've only fixed half the problem. A billet sprocket provides the same strength and reliability as the gears, ensuring the entire oil delivery drive system is fortified against failure.
When Do Coyote Oil Pump Gear Upgrade Benefits Become Essential?
A Coyote oil pump gear upgrade becomes necessary when you significantly increase the engine's stress load beyond its original factory parameters. While peace of mind is one of the key Coyote oil pump gear upgrade benefits for any owner, the modification moves from 'recommended' to 'essential' under specific conditions. According to The Complete Ford Coyote Engine Guide, upgrading is crucial for any engine producing over 600 rear-wheel horsepower (RWHP). At this power level, the internal stresses on engine components are significantly higher than stock.

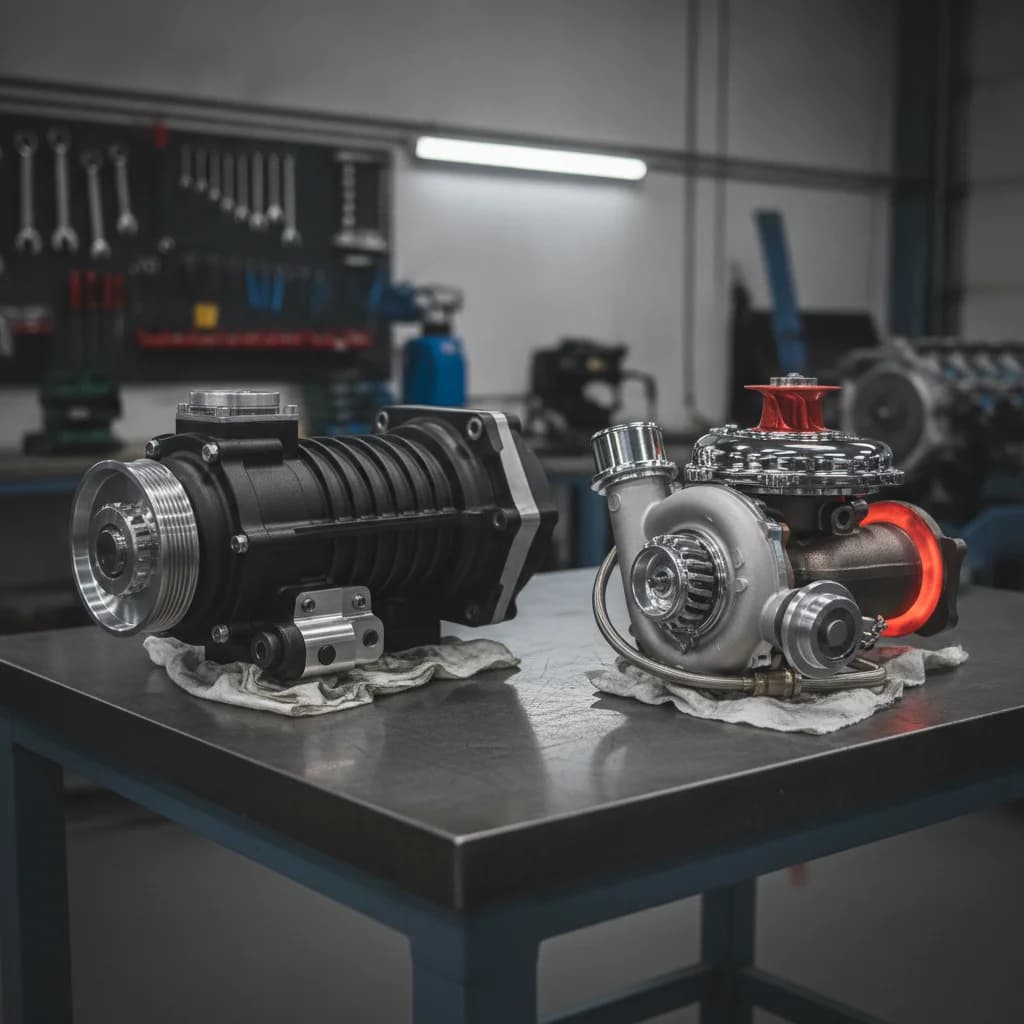

Forced induction is the most common trigger for this upgrade. Adding a supercharger or turbocharger dramatically increases cylinder pressure and horsepower, placing immense strain on the crankshaft and, by extension, the oil pump drive. Similarly, any modification that raises the factory rev limiter or involves aggressive track use—where the engine will live at high RPMs and experience rapid acceleration and deceleration—makes the upgrade a requirement for engine survival.
| Upgrade Trigger | OEM Component Risk Level | Billet Upgrade Recommendation |
|---|---|---|
| Stock Daily Driver (Below 7,000 RPM) | Low | Recommended Preventative |
| Bolt-Ons & Tune (Slightly Raised RPM) | Moderate | Strongly Recommended |
| Forced Induction (Supercharger/Turbo) | High / Critical | Essential |
| Exceeding 600 RWHP | High / Critical | Essential |
| Regular Track Use / Racing | High / Critical | Essential |
Why Trust Apacustom Shop for This Critical Upgrade?
Installing billet oil pump gears and a crankshaft sprocket is an invasive, technically demanding job that requires a deep understanding of the Ford Coyote platform. It involves removing the front timing cover, camshafts, and timing components, making it a procedure where precision is paramount. At Apacustom Shop, our technicians have the specialized tools and experience to perform this upgrade correctly, ensuring perfect timing and component alignment.
We don't just replace parts; we ensure the entire system is optimized for the power you're making. This often goes hand-in-hand with other performance work, from camshaft swaps to a full performance tuning session on our dyno to safely extract maximum power from your new, more reliable engine. We treat this upgrade not as a simple repair, but as a foundational step in building a powerful and durable performance vehicle, whether it's a street-driven Mustang or a track-ready F-150.
Protect your investment and ensure your Coyote engine can handle the power you demand. Don't wait for the catastrophic failure of the factory components. Contact the experts at Apacustom Shop in Queen Creek, AZ, to schedule your billet oil pump gear and sprocket upgrade today.
Apacustom Shop 22375 S Scotland Ct Suite 105, Queen Creek, AZ 85142 (602) 762-4916
Frequently Asked Questions
What is a Coyote oil pump gear upgrade? A Coyote oil pump gear (OPG) upgrade is the replacement of the engine's factory-installed powdered metal oil pump gears and crankshaft sprocket with components CNC-machined from solid billet steel. The primary benefit of this modification is eliminating a common failure point, protecting the engine from catastrophic damage due to oil pressure loss.
Do I need an OPG upgrade on a stock Coyote engine? For a completely stock Coyote engine that is daily driven and never exceeds the factory rev limiter, the risk of failure is low, and an upgrade is not strictly necessary. However, it is highly recommended as a preventative measure for long-term reliability, especially if you plan any future performance modifications.
At what horsepower is a Coyote oil pump gear upgrade required? The widely accepted threshold, as cited by The Complete Ford Coyote Engine Guide, is 600 rear-wheel horsepower (RWHP). Any engine making this power level or more, particularly with forced induction, should have billet oil pump gears and a billet crankshaft sprocket installed to prevent failure.
What causes the stock Coyote oil pump gears to fail? Stock gears fail primarily due to a combination of high-frequency harmonic vibrations from the crankshaft at high RPM and shock loads from abrupt changes in engine speed (like hitting the rev limiter or a bad shift). The powdered metal material they are made from is brittle and cannot withstand these forces, causing it to shatter.
Is the crankshaft sprocket upgrade necessary with the oil pump gears? Yes, upgrading the crankshaft sprocket is essential for a complete and reliable solution. The factory sprocket is also made from powdered metal and is a known failure point. Replacing the gears but leaving the stock sprocket in place leaves a critical weak link in the engine's oiling system drive.
How long does an oil pump gear upgrade take? An oil pump gear and sprocket upgrade is a labor-intensive process that requires significant engine disassembly, including removal of the front timing cover. Typically, the job can take a full day or more for an experienced technician. It's best to consult with a performance shop like Apacustom Shop for a precise time estimate for your specific vehicle.
